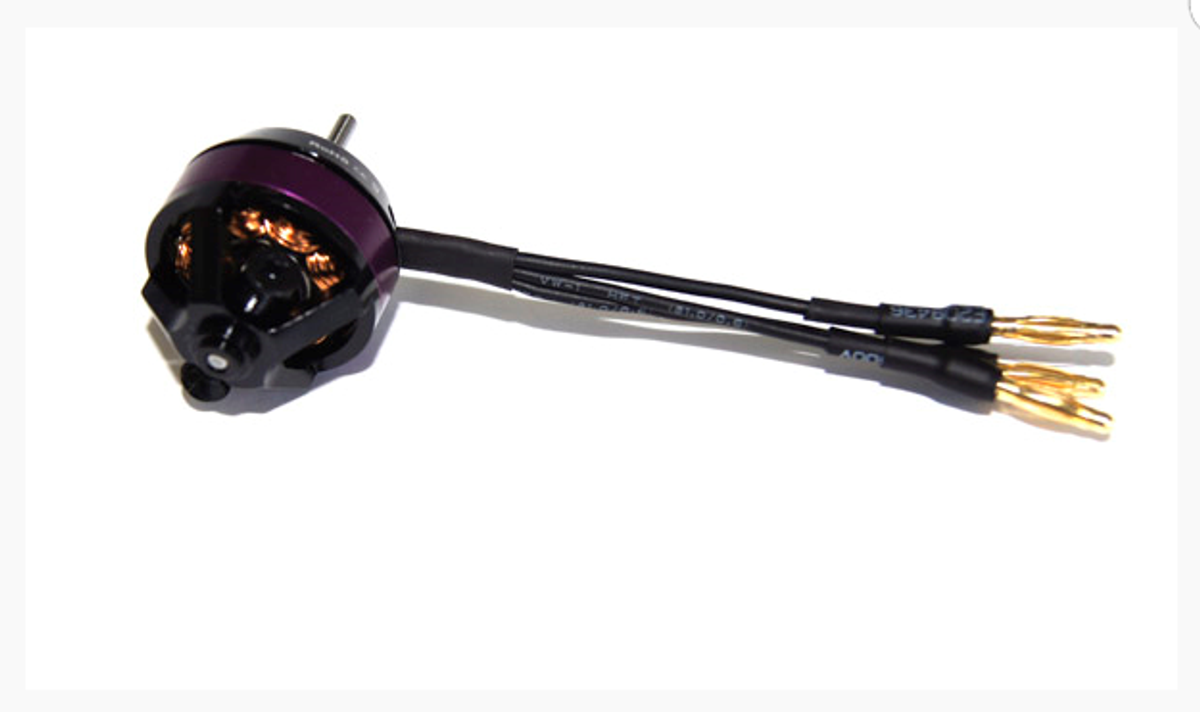

The A10 motors are smalle outrunner of our series and provides great efficiency and light weight.
They’re ideal for small electric airplanes up to 200g (7oz). Featuring a Slotted 12-pole outrunner design. The Curved Neodym-Magnets offer a perfect gap from the inside of the rotor for optimal power and efficiency

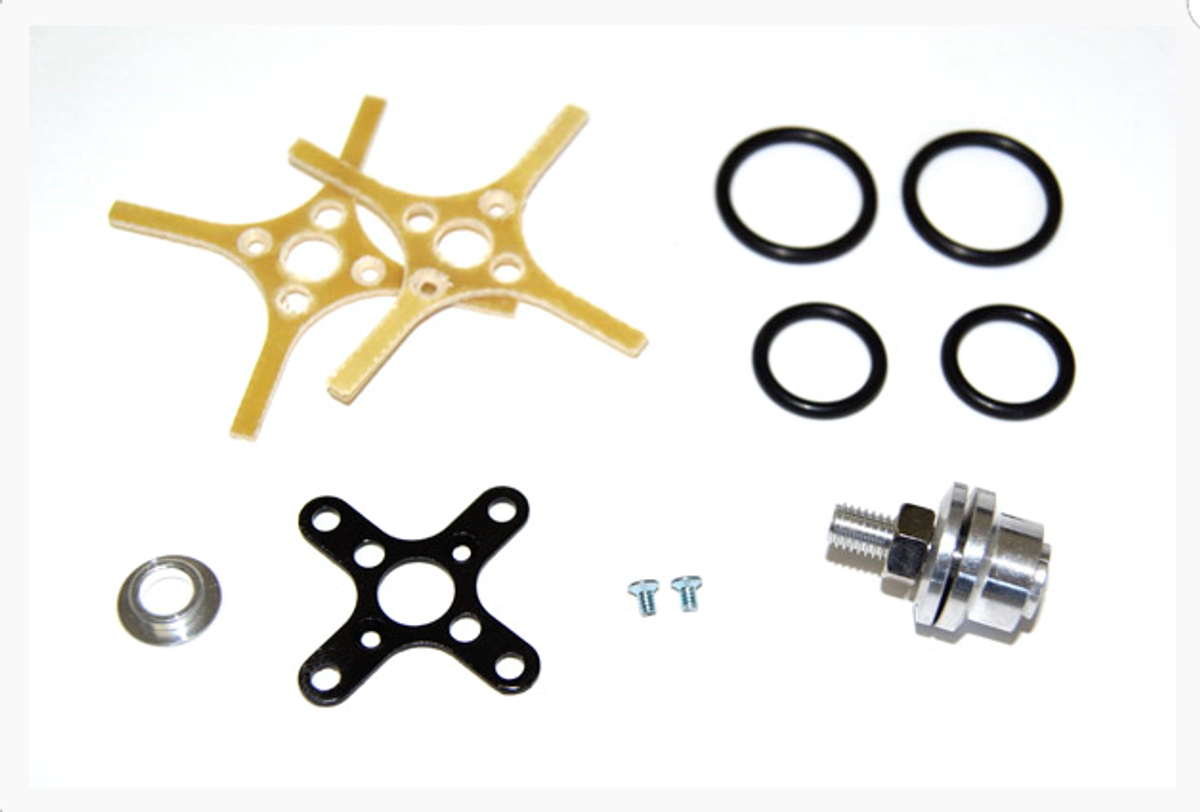

The Backmount from Aluminium and Fiberglas, Prop adapter for GWS, STO and APC-Props with needed O-Rings and all screws are included.The motors are available in different Lengths and Windings. Please refer data the data tables to find the right motor for your application.
Specifications:
| Powerange | max. 75W (15 sec.) | |
| Idle Current @ 8,4V | 1,1A | |
| Resistance (Ri) | 0,11 Ohm | |
| RPM/Volt (kv) | 2200 U/min-1 | |
| Weight | 20g | |
| Diameter | 21 mm | |
| Length | 25 mm | |
| Poles | 12-Pole Outsiderunner | |
| recom. Speedcontroler | 4A to 7A Brushless | |
| recom. Timing | 20° - 25° |
