JETI Duplex DS-24 Multimode

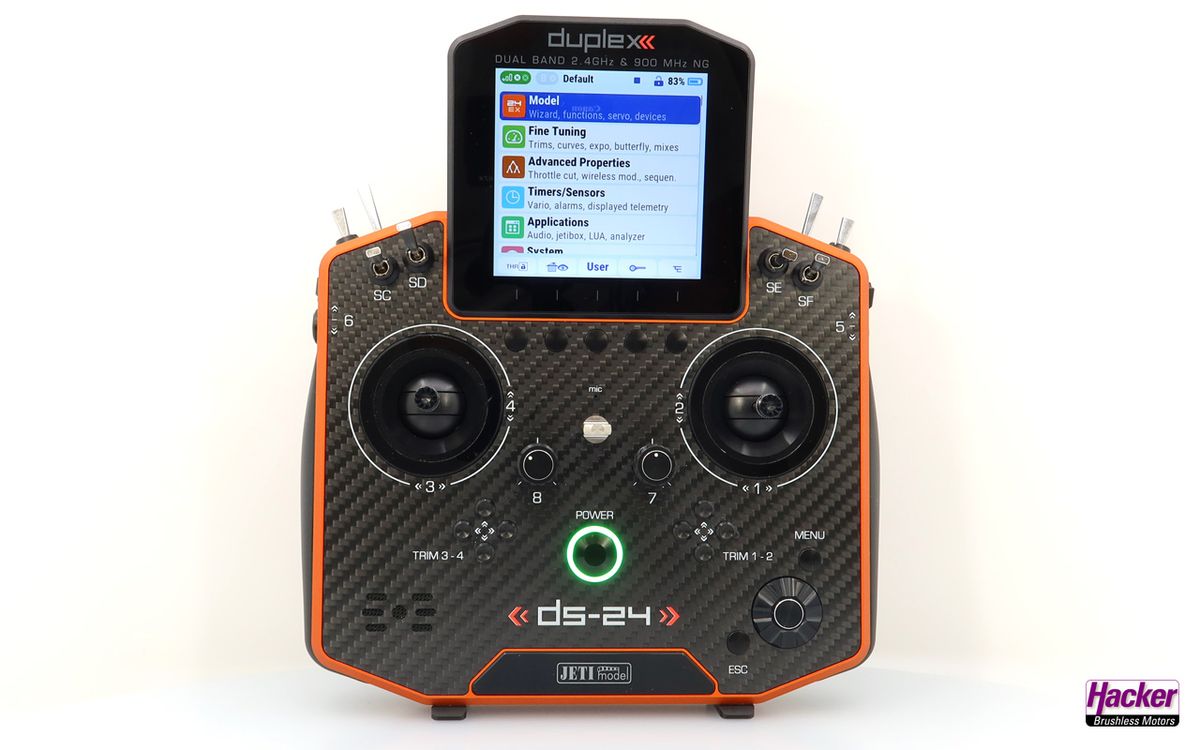

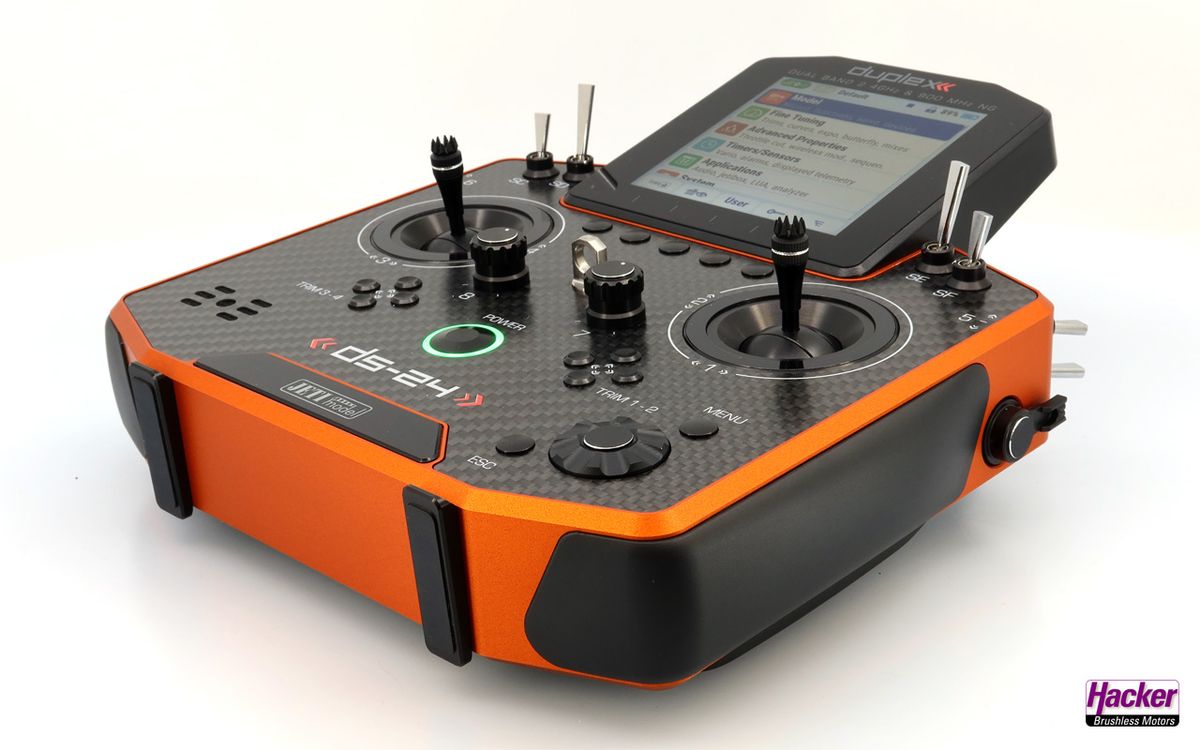

Handheld transmitter DS-24 Multimode

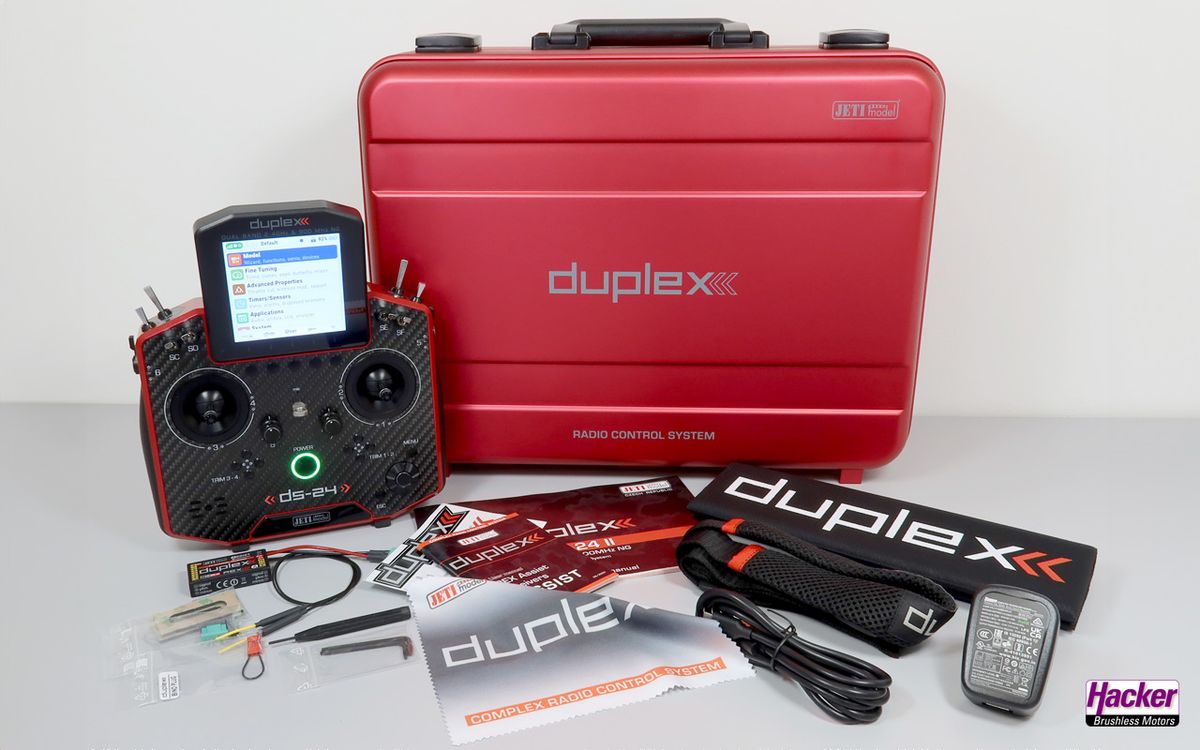

Delivery contents

Handheld transmitter DS-24 Multimode (delivered in Mode 2, steering mode easily adjustable), transmitter battery LiIon 5200mAh (inside TX), battery charger for transmitter, solid carrying case, RSAT-900Mhz for special backup system, neckstrap.

New features

• Slider/Switches at the Backcover
• 24 channels
• 3 RF moduls 2.4Ghz + 900Mhz Backup System
• Vibration Alarm at the stick
• Colour display
• 4 model types (Wing/Heli/Multicopter/Boat, Truck)
• Radio function
• MP3 player

Transmitter hardware

• Identify the stick positions by hall sensors (without potentiometer)
• Stick resolution 4096 steps
• 3 colour display with backlight
• Rotating stick mechanic
• Aluminum stick, length-adjustable, with ball bearings
• Internal memory
• Built-in antennas
• Integrated LiIon battery for long operation time (5200mAh)
• Charger
• Aluminum Carrying Case
• Speech output
• Headphone jack
• Digital trims

Transmitter software

• 2.4 GHz EX DUPLEX + 900Mhz Backup System
• 24 channels
• Customizable menu system
• Almost unlimited adjustment possibilities
• Almost unlimited memory model number
• Firmware upgrade via USB
• Ultra-fast control responses
• Power management system for extended operating time
• PC interface
• 4 selectable types of models ( Wing/Heli/Multicopter/Truck, boat)
• 4 languages (EN/DE/CZ /FR)

Telemetry functions

• Speech of telemetry alarms and telemetry values
• Display of telemetry data in real time on the transmitter display
• Recording of telemetry data
• PC transfer, storage of telemetry, model and channel settings

Specifications

• # of Channel Outputs 24
• Dimensions [mm] 180 x 270 x 40
• Weight [g] ~1340
