Robbe Modellsport FSW 220 BB MG HV WP SAIL WIND
The Robbe FS Servos are high-quality and precisely manufactured steering gears for the RC sector. Due to the high manufacturing standard and the resulting processing quality you achieve a maximum of power, speed, reliability and positioning accuracy.
The Robbe FS Servo series impresses with its exceptionally good price-performance ratio.

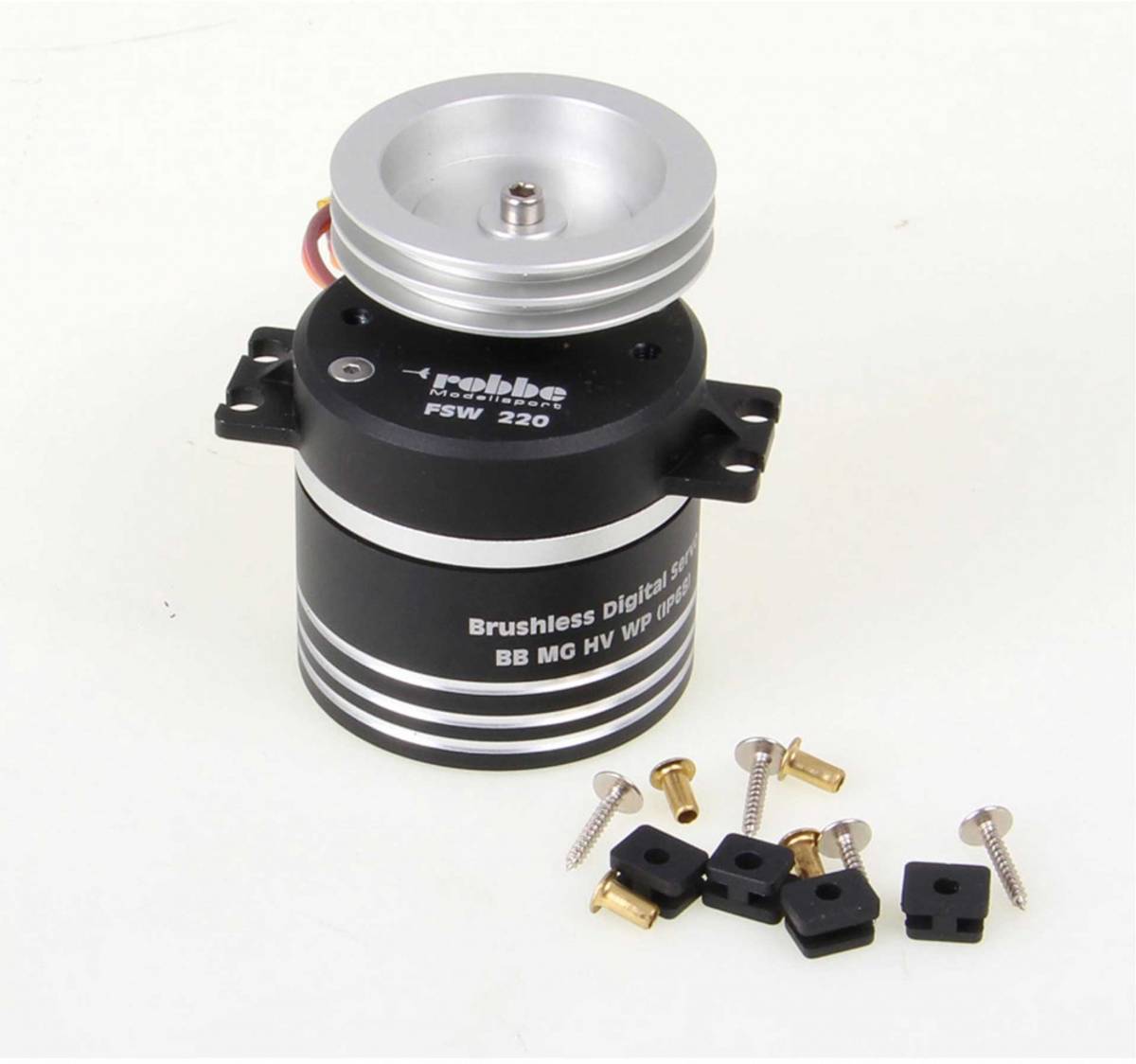

The Robbe FSW 220 Sail Winch is an extremely strong, robust and precise winch with a waterproof CNC aluminium housing (IP68), full metal gearbox and double ball bearing steel output gear designed for extreme loads and durability.
The brushless motor and digital control electronics meet the highest quality standards and ensure the highest control precision and can be operated with 4.8-8.4V.
The FSW 220 is also suitable for special applications, such as special retractable landing gear or dinghy pick-up systems.
4 full rotations.
The Robbe FS Servos are high-quality and precisely manufactured steering gears for the RC sector. Due to the high manufacturing standard and the resulting processing quality, you achieve maximum power, speed, reliability and positioning accuracy. The Robbe FS Servo series impresses with its exceptionally good price-performance ratio.
Technical data
Bearing: | •• |
---|---|
Servo Speed sec./60° (4,8V) HV: | 0,115 |
Servo Speed sec./60° (6V) HV: | 0,09 |
Servo Speed sec./60° (7,4V) HV: | 0,075 |
Servo Speed sec./60° (8,4V) HV: | 0,07 |
Servo Torque kg/cm (4,8V) HV: | 13 |
Servo Torque kg/cm (6V) HV: | 17 |
Servo Torque kg/cm (7,4V) HV: | 19 |
Servo Torque kg/cm (8,4V) HV: | 22 |
Gearbox Type: | Metal |
Weight (g): | 106 |
Length (mm): | 60 |
Wide (mm): | 20 |
Height (mm): | 42 |
Servo type: | High Voltage |
Gear tooth: | 25 |
Betriebspannung (V) HV: | 4,8 - 8,4 |
